Name: Greenlee Intelli-PUNCH Battery-Hydraulic Knockout Kit With Slug-Buster, Model LS100X11SB4X*
SKU: B3JRY 6620580053097
Availability: InStock

New

Greenlee Intelli-PUNCH Battery-Hydraulic Knockout Kit With Slug-Buster, Model LS100X11SB4X*

Greenlee Intelli-PUNCH Battery-Hydraulic Knockout Kit With Slug-Buster, Model LS100X11SB4X* - Image 2

Greenlee Intelli-PUNCH Battery-Hydraulic Knockout Kit With Slug-Buster, Model LS100X11SB4X* - Image 3

Greenlee Intelli-PUNCH Battery-Hydraulic Knockout Kit With Slug-Buster, Model LS100X11SB4X* - Image 4

Original price was: $323.00.Current price is: $98.99.

SKU: B3JRY 6620580053097 Category: Fish Tape & Conduit Tools Tags: Brand_Greenlee, Product Filter_Conduit Benders, Status-Special-Order, Sub Category_Fish Tape & Conduit Tools

Sustainable materials, for a better tomorrow.
Safeguard Your Shopping Experience
The best quality products, always.
Top-Notch Quality

Description
Reviews (0)

Description

Features pressure-sensing and auto-retract technology that accurately detects punch completion and automatically retracts the ram, preventing potential damage to the punch parts. The 360° Rotating Head design allows you to punch at any angle, along with Gator Eye compatibility, allowing you to monitor performance. Alignment markings improve punch accuracy and productivity.

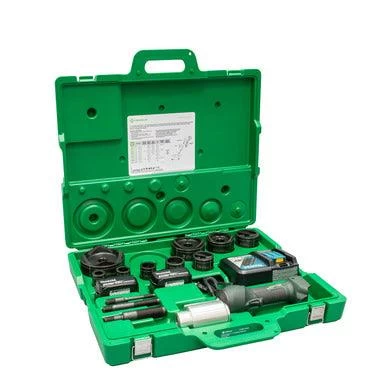

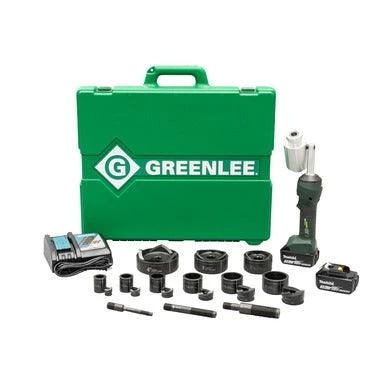

Included in Kit

Intelli-PUNCH 11-ton hydraulic knockout driver
1/2″ – 2″ conduit size Slug-Buster® punches
2-1/2″, 3″ and 4″ conduit size Standard Round punches
1/2″ – 3″ and 4″ conduit size dies
7/16″ hydraulic draw stud
3/4″ hydraulic draw stud
1-1/8″ hydraulic draw stud
(2) 18V Li-ion 3.0Ah Batteries
120V AC Charger
KCC-LS4 carrying case

Benefits

Time Saver – maximum cycle time of 8 seconds
Patent-Pending Auto-Retract Technology – Pressure-sensing technology accurately detects punch completion and automatically retracts the ram, for longer tool life
360° Rotating Head – Rugged, patent-pending swivel design to punch at any angle
Compact, Ergonomic Design – Ergonomic tapered grip for easy one-handed operation
Slug-Buster® punch profile splits slugs for easy slug removal
Knurled edge on punches for better grip
New die design optimized for widest range of materials and drivers
Laser markings for quick part identification. Alignment markings for improved accuracy
Easy threading – draw studs with “dog point” tip helps eliminate cross-threading. Hex key access for easy removal from tool.
Gator Eye® Compatible – with i-Press™ software, monitor tool performance including peak forces and number of cycles
Compatibility – Works with all Greenlee knockouts. Same draw studs used with Intelli-PUNCH™, LS50L2 and 746A ram
Punches, dies, draw studs and case made in the USA

Technical Information

Brand: Greenlee
Application : Punch conduit size holes in mild steel, stainless steel, aluminum, fiberglass and plastic.
Capacity : 11-Ton
Capacity Mild Steel : 4″ Conduit up to 10 gauge, 6″ Conduit up to 14 gauge
Capacity Stainless Steel : 4″ conduit up to 10 gauge
Driver : LS100X Intelli-PUNCH™ Driver
Maximum Capacity Mild Steel : 10 gauge
Minimum Pilot Hole : 1/2″, 7/8″, 1-1/8″
Operation : Single-Trigger
Operation Type : Battery-Hydraulic
Conduit And Pipe Size : 1/2″ to 6″
Dimensions of Driver: 4.4 x 2.9 x 14.5″ (111 x 73 x 368 mm)
Dimensions of Case: 23.0 x 19.0 x 6.0″ (584 x 483 x 152 mm)
