Klein Tools Laser Level, Self-Leveling Green Cross-Line And Red Plumb Spot, Model 93LCLG

Description

The Klein Tools Self-Leveling Green Cross-Line Laser Level is a high-performance laser leveling and alignment tool for professionals. This level provides a reliable pendulum self-leveling system with clear, bright laser level lines, and a 90-degree vertical plumb spot feature. Equipped with an integrated magnetic mount and an additional ceiling clip mount, Klein’s cross-line level enables a multitude of alignment and layout applications.

Benefits

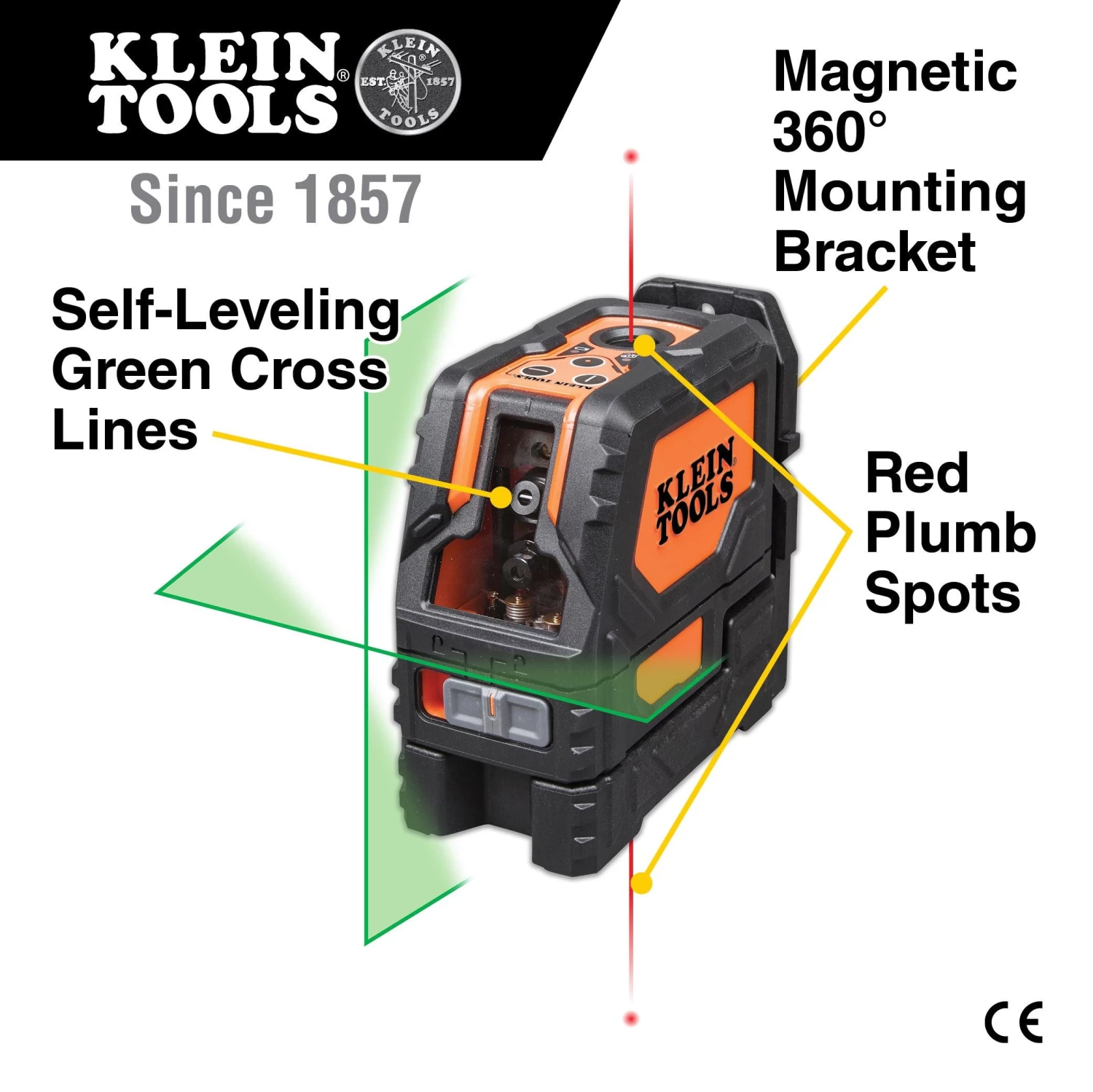

• Self-leveling laser level is easy-to-read with green horizontal and vertical laser lines and red plumb spot lasers
• Projects horizontal and vertical lines independently or together to address various alignment tasks

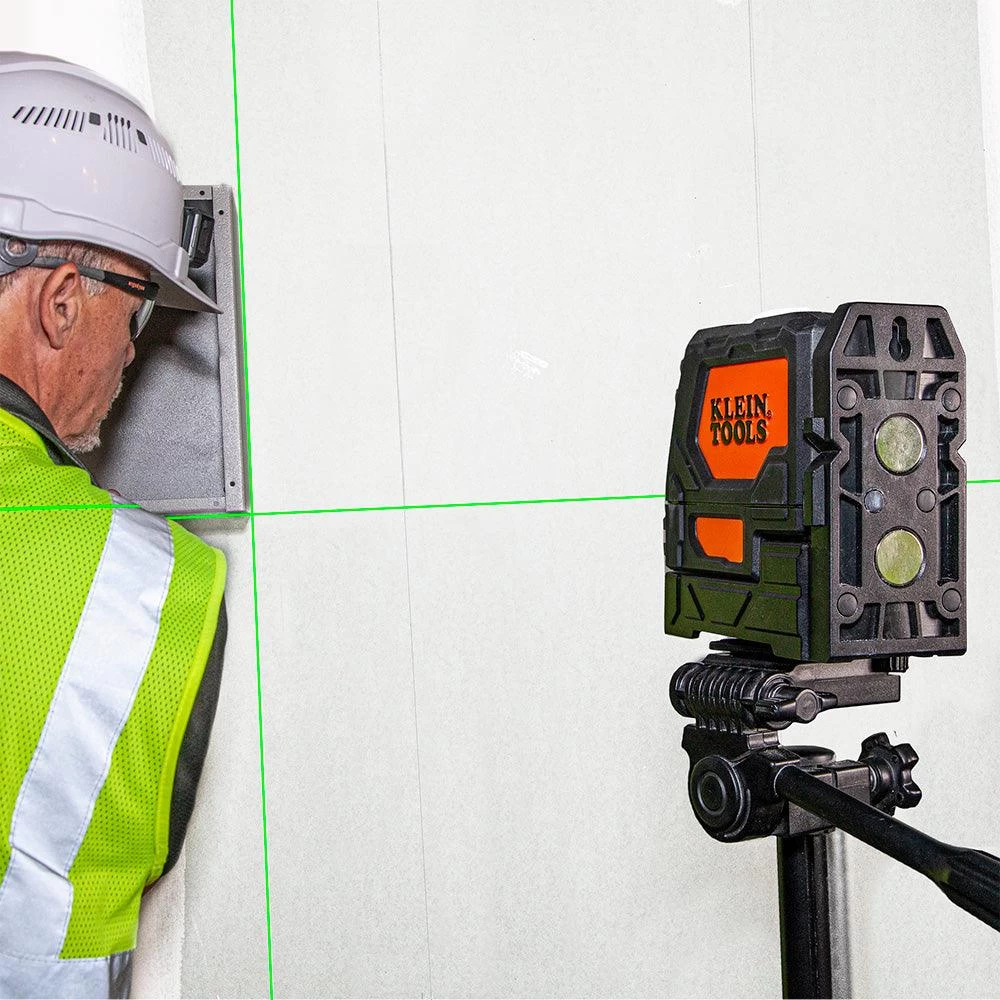

• Integrated magnetic 360-Degree mounting bracket with 1/4-Inch and 5/8-Inch tripod mounting threads

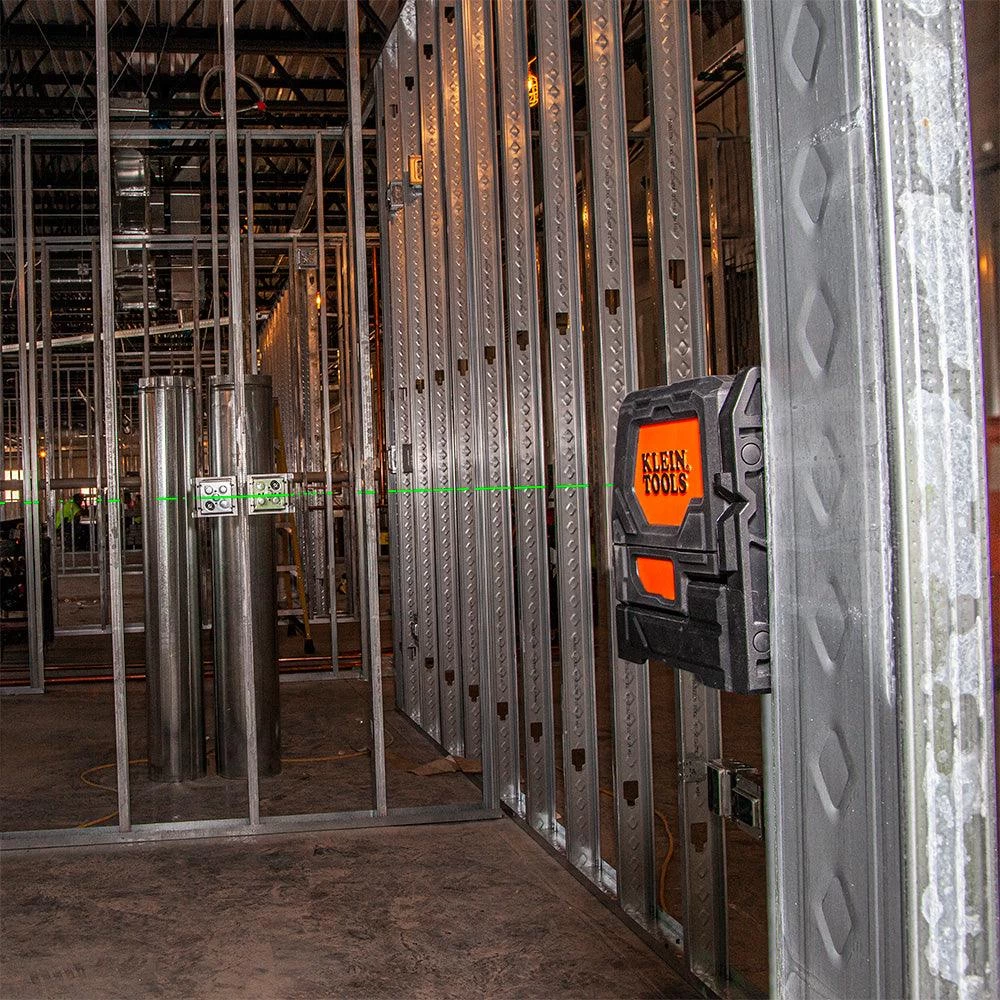

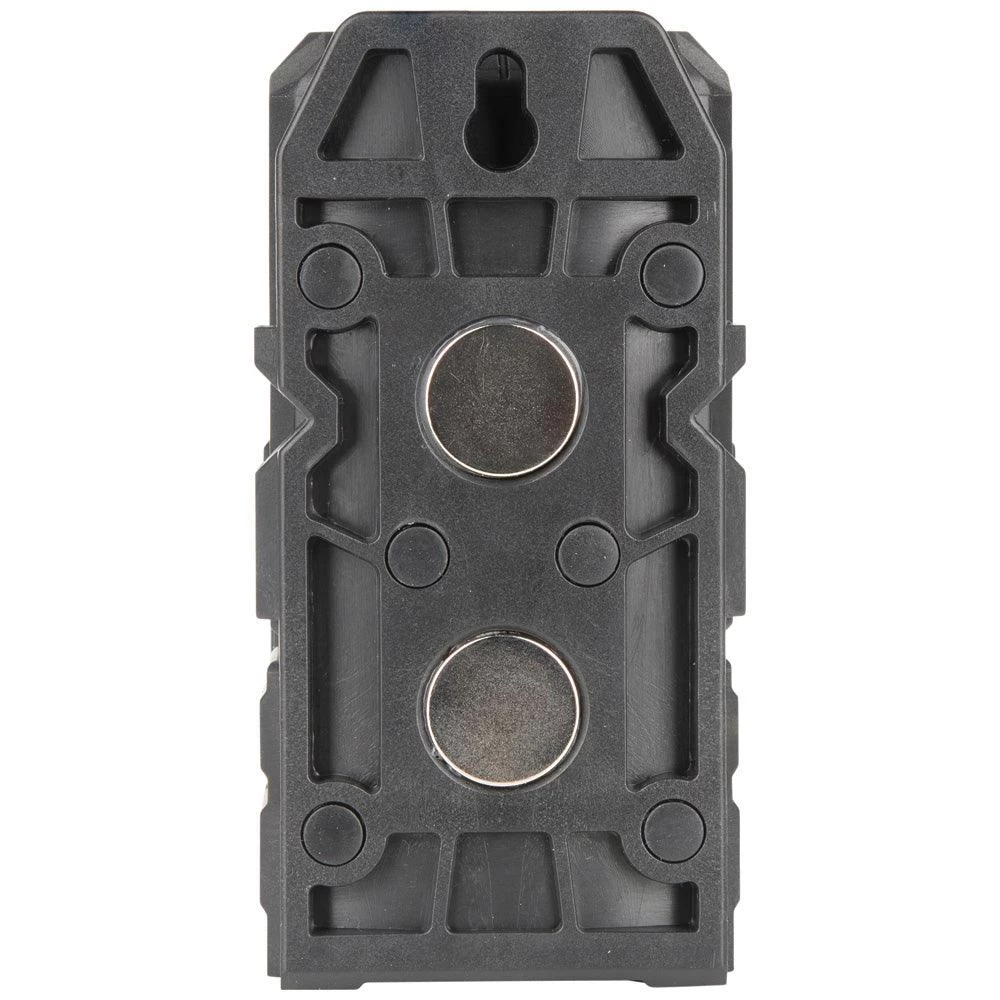

• Magnetic bracket facilitates attachment to ferromagnetic objects such as steel studs, doors, beams or electrical panels

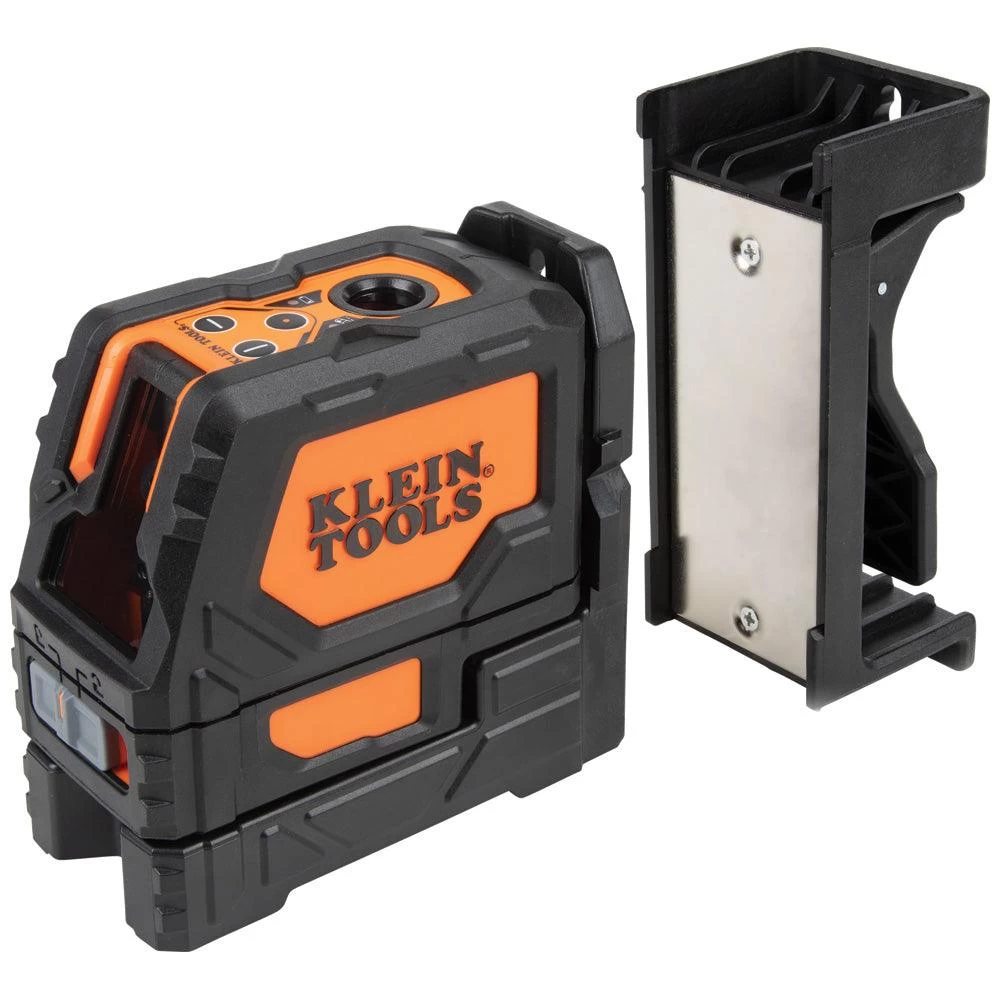

• Additional mounting clamp attachment for use on ceiling grid applications

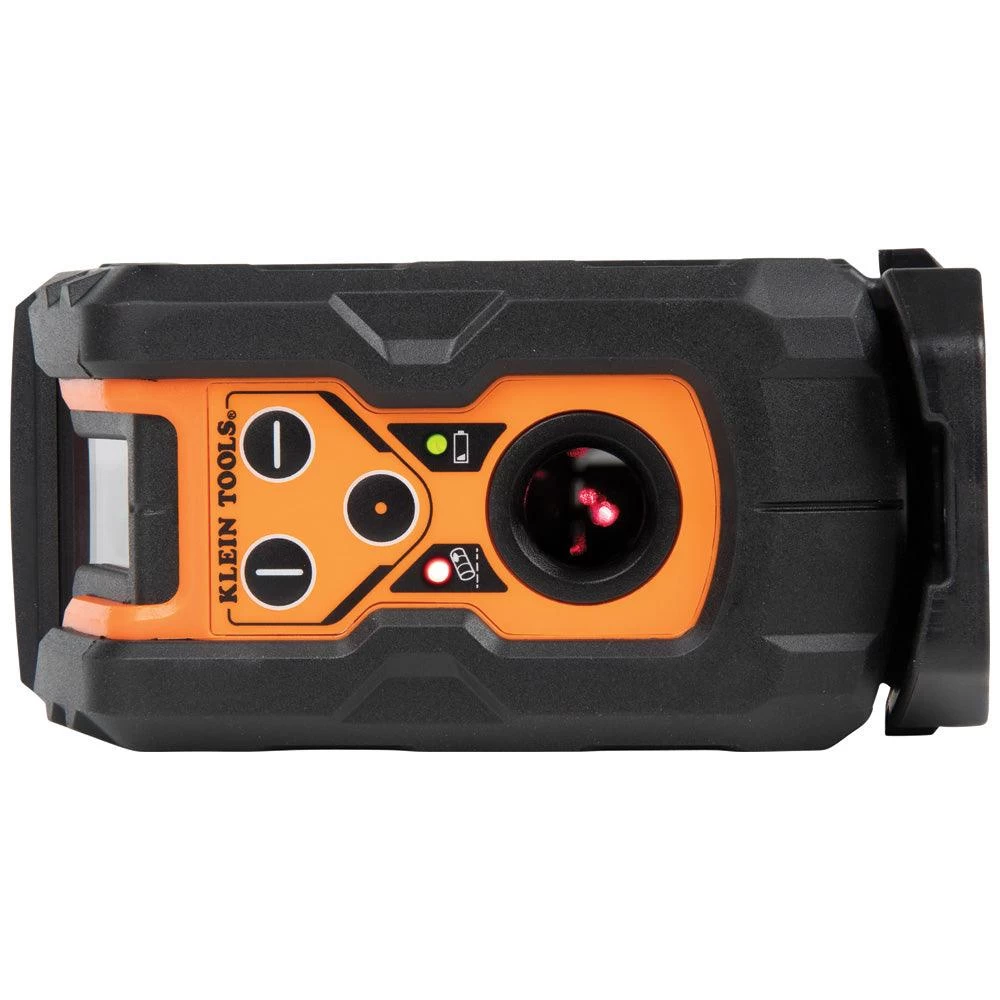

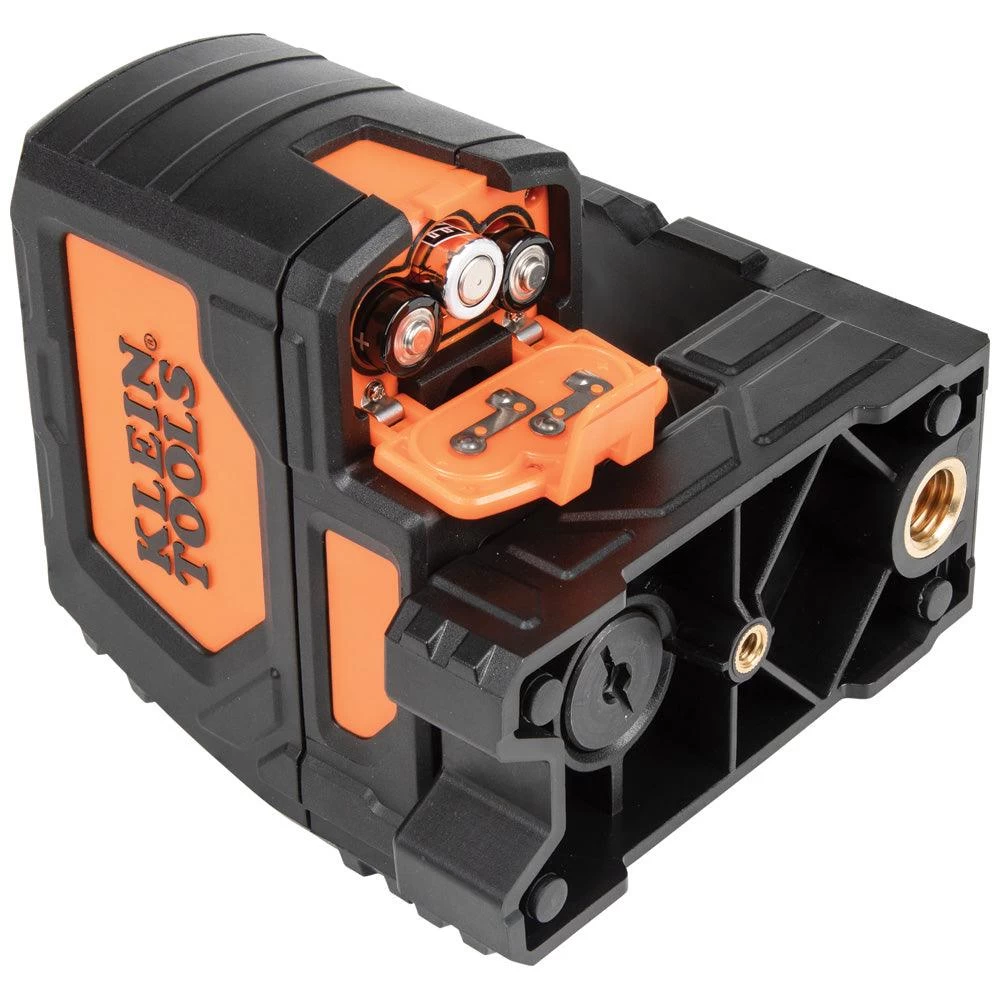

• Low battery indicator and easily accessible battery compartment
• Water and dust resistant (IP54)
• Hard plastic carrying case included

Technical Information

Type: Laser
Application: Self-Leveling Laser Alignment Instrument that Delivers Horizontal and/or Vertical Cross Lines, and/or Plumb Spots
Special Features: Integrated Magnetic 360° Mounting Bracket with 1/4” and 5/8” Tripod Mounting Threads; Mounting Clamp Attachment; Excessive Tilt Indicator
Material: ABS Housing and Electronic Components
Batteries: 3 x AA
Laser Wavelength: 515-530 nm (Cross-Lines), 630-680 nm (Plum Spots)
Laser Safety: ≤1mW Each Beam, Class 2 Laser Product
Number of Beams: Four Horizontal, Vertical, Plumb Up, Plumb Down
Plumb Laser: Yes
Indoor Range: –
Outdoor Range: 65′ (20 m)
Maximum Distance: 70′ (21 m)
Accuracy: ±3/32” per 33′ (±2 mm per 10 m) Vertical and Horizontal Beams, ±1/8” per 33′ (±3 mm per 10 m) Plum Spot
Magnet Type: Permanent Rare Earth
Drop Protection: 3.3′ (2 m)
Ingress Protection: IP54: Water and Dust Resistant
Transit Locking Mechanism: Yes
Low Battery Indicator: Yes
Standard: EN61326-1, EN60825-1, 21 CFR 1040.10 and 1040.11
Bag or Case: Hard Carrying Case
Included: Hard Carrying Case, Instruction Manual, Mounting Clamp, 3 x AA 1.5V Alkaline Batteries
Overall Length: 5.3” (13.5 cm)
Overall Height: 5.0” (12.7 cm)
Overall Width: 2.6” (66 cm)
Weight: 1.5 lb (0.68 kg)
